Creation and Modification of Language Packages

About Modification and Creation of Language Packs

You can customize the language resources on your Cryptshare Server to your liking. You can change both the language resources that are shipped together with the Cryptshare Server, and create additional language resources yourself in order to present Cryptshare in further languages which are not part of the scope of delivery.

Language Packs and Server Updates

Please note that the update routines for Cryptshare Server may overwrite existing language packs on the server with newer versions. This is always the case when the server version you want to update to includes new features for which additional language resources are required for display. Cryptshare performs an automatic backup of the previous version of Cryptshare Server before each update. This backup also includes the language packages so that any changes that you have made are not lost when language packs are overwritten during the update. However, they must be manually copied from the backed-up version of the language package and entered into the updated version of the language pack accordingly. You can find the backups in the sub-folder "backup" of your Cryptshare Server program directory. Open the .zip archive from which you want to restore the language packs and navigate into the folder `system\resources\lang`
Language packs and date formats

Please note that date formats for Java files ("server/texts/administration.properties", "server/texts/system.properties" and "server/texts/mail.properties") have to be compatible with the respective programming languages. You can find more details here: Java.

Pre-Conditions

In general it is sufficient to only include those files into the package, which shall be changed (normally translated). If an element is missing within a language package the corresponding element from the fallback package will be used instead.

Apart from that the following conditions must be met:

File/s Condition

version.xml

Encoding has to be UTF-8 without BOM

All Files

Do not contain a language code in the file name

<\*.properties>

Encoding has to be ISO-8859-1.

<\*.html>

Encoding has to be UTF-8 without BOM

When not using the encodings listed above this can cause errors in the User Interface and in email notifications. Therefore it is recommended to use an editor supporting different encodings for editing the files. The Windows editor 'Notepad' does not support a suitable format. Editors supporting additional formats are for example:

Package Descriptor (version.xml)

Language Packages are defined and recognized (when installed) by their respective Descriptor-File (version.xml). The file describes the following details about the package:

  1. Version of the Package

  2. Language, and optionally the Country of the Package (ISO-639-1)

  3. Product-Key for which this package is made

Language Package Version

The version number of a package consist of a Major Version Number and a Minor Version Number: <Major>.<Minor>. The Major-Number describes the compatibility with the product for which the package is made. The Minor-Number is count up for any change that has been made to the package.

Example

The Cryptshare Server v3.10 requires at least a language package of major version 4. An accepted package therefore must at least have version 4.0.

Custom Version Number

In order to know on which language package your custom package is based on you can use the original version number and multiply the major version number by 10: v6.1 -→ v60.1

Language Package Product-Key

The new language package management can differentiate between packages made for different Cryptshare Products. This is specifically interesting for the Email Templating-Engine in order to install different notifications on the server for different products. For instance, Cryptshare for Outlook (Classic) defines two different Email templates for the sender- and recipient notification.

Product-Name Product-Key

Cryptshare Server

server

Cryptshare for Outlook (Classic)

client.outlook

Cryptshare for Notes

client.notes

Cryptshare Robot

client.robot

Cryptshare .NET API

api.dotnet

Cryptshare Java API

api.java


<locale>
    <value key="vendor" type="string">\[VENDOR\]</value>
    <value key="version" type="string">\[LANG\_VERSION\]</value>
    <value key="locale" type="string">\[LANGUAGE\]</value>
    <value key="product" type="string">\[PRODUCT\]</value>
</locale>
<locale>
   <value key="vendor" type="string">Pointsharp GmbH</value>
   <value key="version" type="string">4.0</value>
   <value key="locale" type="string">de\_DE</value>
   <value key="product" type="string">client.outlook</value>
</locale>

Structure of a language package

Cryptshare Server

A regular Cryptshare Server Language Package has the following structure:

Path Content Mandatory

version.xml

Contains meta information about the language package:

  • Package language in form of a ISO-639-1 Code

  • Package Version: Versions not supported will be declined by the Cryptshare Server

  • Product: The product type of the package

Yes

administration.properties

Contents for the Administration Interface

Only required if a translation of the Administration Interface is desired.

web-app.properties

Contents for the User Interface

Only required if a translation of the User Interface is desired.

web-common.properties

Contents used for the User Interface as well as the Administration Interface.

If either the Administration or the User Interface is modified, these resources should be modified as well.

system.properties

Contents that are used for system processes

Yes

mail.properties

Contains text snippets for email notifications

Yes

templates

Contains all email templates required for email notifications

Yes, otherwise the defined fallback package is used.

Cryptshare for Outlook (Classic)

Path Content Mandatory

version_<isocode>.xml

Contains meta information about the language package:

  • Package language in form of a ISO-639-1 Code

  • Package Version: Versions not supported will be declined by the Cryptshare Server

  • Product: The product type of the package

Yes

lang_<isocode>.xml

Contains resources for the Cryptshare for Outloook (Classic) User Interface

Yes

templates → recipient

The email template for the recipient notification when performing a transfer via Cryptshare for Outlook (Classic)

Yes

templates → sent

The email template for the email stored in the sent-items folder of Outlook when performing a transfer via Cryptshare for Outlook (Classic)

Yes

templates → sms

The email template for the SMS notification when performing a transfer via Cryptshare for Outlook (Classic) and choosing to send the password via SMS

Yes

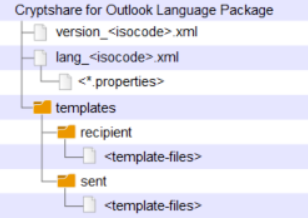

Directory structure for a Cryptshare for Outlook Language Package

directory structure language package
